IOScope 2 adds native support for iPad and new, lower price


IOScope 2.0 is now available for download on the App Store.

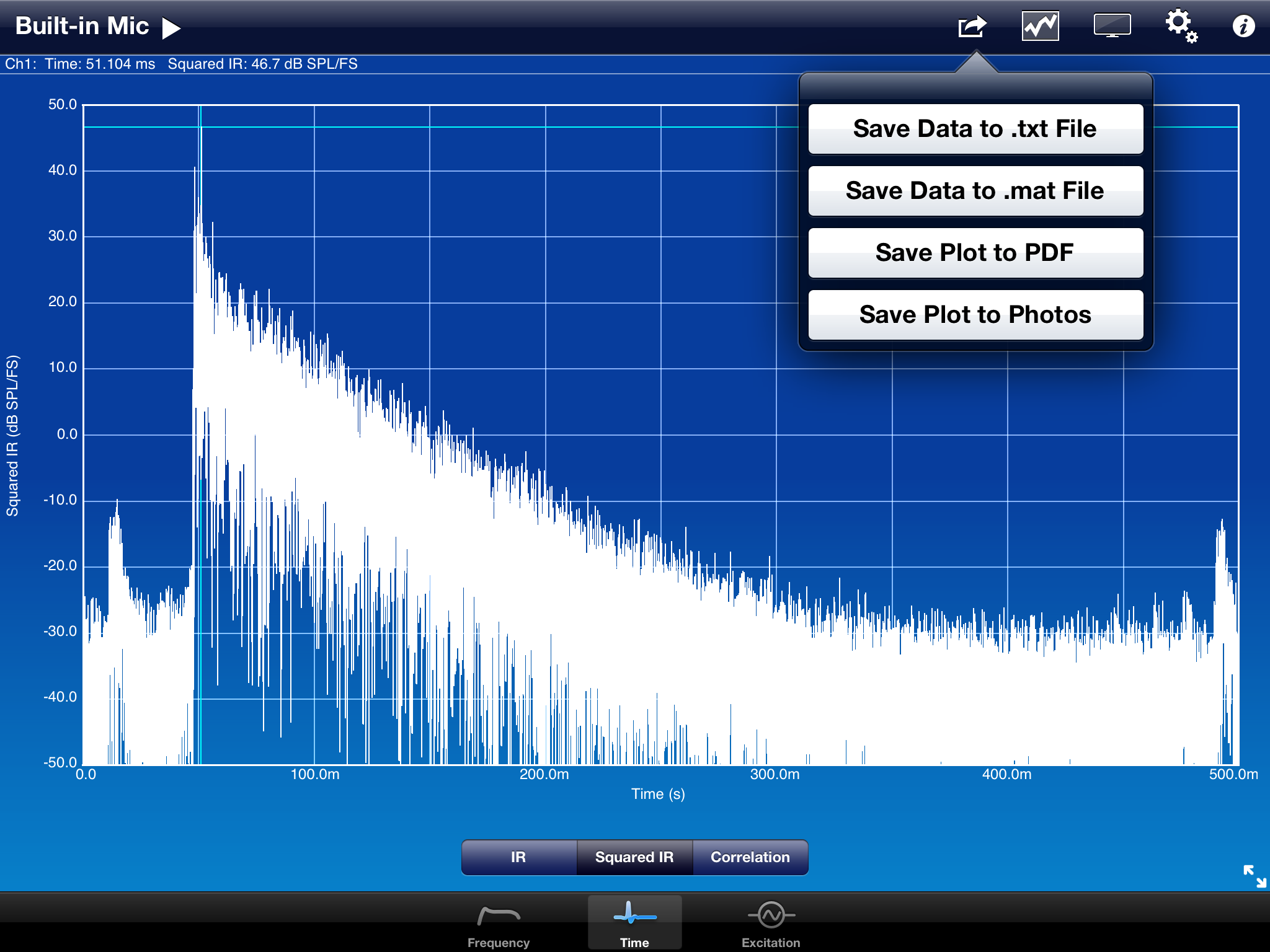

IOScope room impulse response measurement

IOScope room impulse response measurement

IOScope 2 comes with a new, lower price and offers some of the same new features which were recently added to SignalScope, SignalScope Pro and SoundMeter for iOS.

With IOScope, measure loudspeaker impedance, frequency response, and sensitivity. Measure a room impulse response. Tune a large sound reinforcement system, time-align a set of surround sound speakers, or optimize your home stereo. Determine the actual cutoff frequencies of your latest speaker crossover circuit, or teach your students the fundamentals of Fourier analysis of dynamic systems.

Measure frequency response magnitude and phase, coherence, and group delay. Time domain functions enable you to measure impulse response and auto/cross-correlation. IOScope includes a built-in signal generator for producing suitable excitation signals to analyze your system or device under test (DUT). The reference signal can be taken from the internal signal generator or from an external source (when using an external reference, a stereo audio input device, connected to the dock connector, is required).

IOScope also turns your iOS device into a platform for data acquisition, storing acquired data in tab-delimited text files, MAT-files, or images, including high-resolution PDF files, for later retrieval from your device.

What’s new in version 2.0?

  • IOScope now runs natively on iPad, as well as on iPhone and iPod touch devices.
  • iPad retina display resolution is fully supported.
  • Analyzer plots can be saved to PDF files in addition to jpeg image files.
  • Data files are accessible via iTunes file sharing, in addition to the app’s built-in web server.
  • Data files, including text and PDF files, can be previewed or printed within the app or optionally opened in another compatible app.
  • Three color schemes are supported, offering black, blue, and white background colors (white may be preferred for printing results stored in PDF or jpeg images).
  • In landscape orientation, the new full-screen mode hides the toolbar and tab bar to maximize the size of the analyzer displays.
  • IOScope offers enhanced support for audio accessories, connected via the 30-pin dock connector.
  • Input gain adjustment is available for any audio input hardware that supports it.
  • Software-selectable options for the GuitarJack and GuitarJack model 2, from Sonoma Wire Works, may be adjusted directly from within IOScope.
  • IOScope now supports multi-channel USB audio devices, connected to any iPad model via the iPad Camera Connection Kit.
  • External displays are supported on iPad (up to 1920×1200 resolution on iPad 2 or 3; up to 720p on the original iPad). External display resolution is dependent on the screen resolution as well as the video output adapter connected to the iOS device.

IOScope 2.0 requires iOS 4 or later, and is now available for download on the App Store for $74.99 (USD) in the Utilities category.

Learn more or download IOScope on the App Store

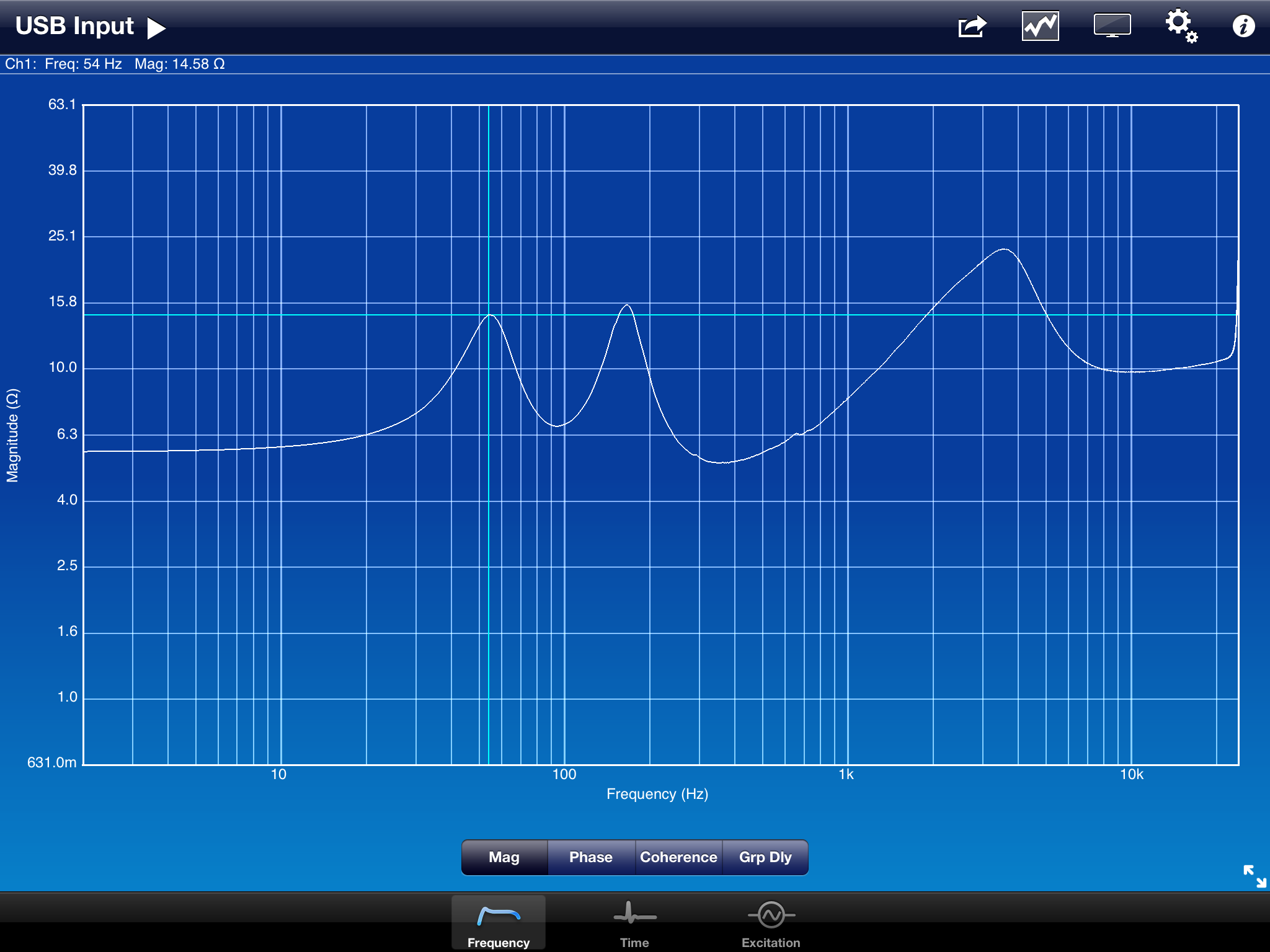

IOScope impedance measurement

IOScope impedance measurement
